Air Ultrasonic Ceramic Transducers 400EP250
Features
  • Compact and light weight
  • High sensitivity and sound pressure level
  • Excellent temperature and humidity durability
  • Low cost
  • Applications
  • Remote control devices
  • Robotics
  • Intrusion Alarms
  • Energy saving equipments
  • Specification
    400EP250 Transceiver
    Center Frequency 40.0±1.0KHz
    Bandwidth(-6dB) 2.0KHz (FOM)
    Transmitting Sound Pressure Level
    at resonant frequency; 0dB re 0.0002µbar per 10Vrms at 30cm
    110 dB min.
    Receving Sensitivity
    at resonant frequency; 0dB=1 volt/µbar
    -72 dB min.
    Capacitance at 1KHz ± 20% 2100pF
    Max.Driving Voltage 100Vp-p @20 bursts, 25 ms repetition rate
    Total Beam Angle -6dB 23° typical
    Operation Temperature -30 to 70° C
    Storage Temperature -40 to 80° C
    All specification taken typical at 25°C; closer frequency tolerance can be supplied upon request.
    Models available

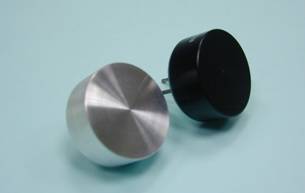

    1. 400EP250 Aluminum Housing
