Air Ultrasonic Ceramic Transducers 400EP125
Specification | Acoustic Performance | Dimensions | Download | Back | Home
Acoustic Performance

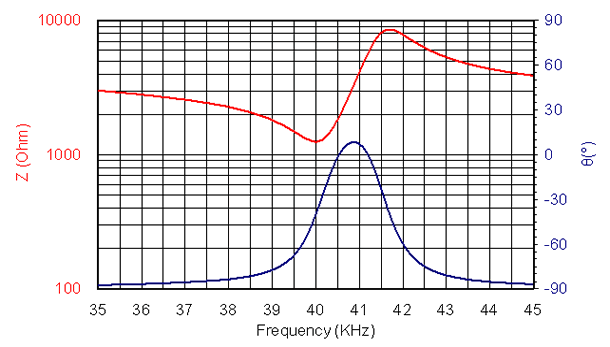

Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level
400EP125 Impedance
400EP125 Phase Angle

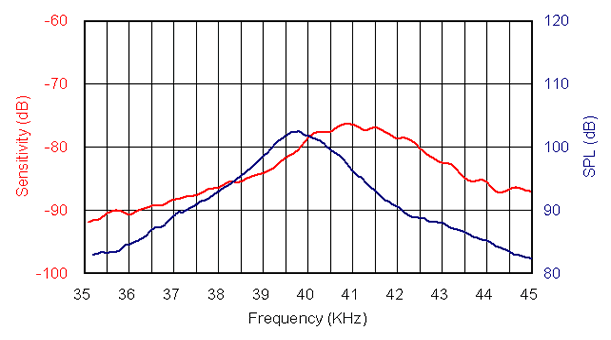

Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm

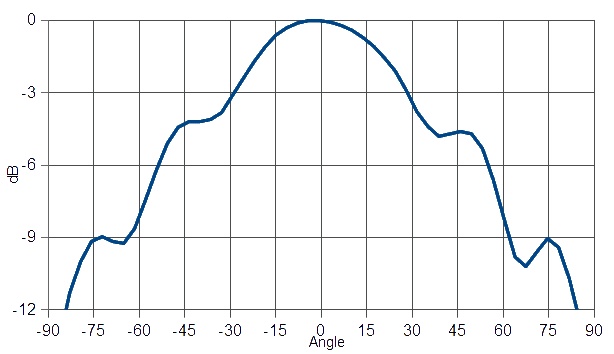

Beam Angle: Tested at 40.0KHz
