| Air Ultrasonic Ceramic Transducers | 400ET/R18S |
| Acoustic Performance |

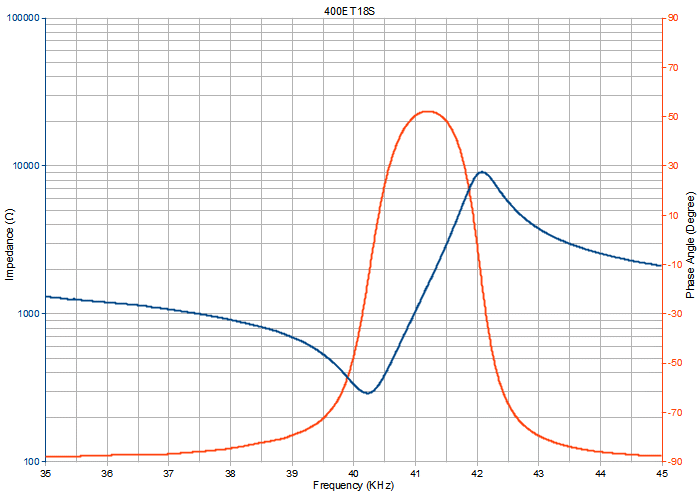

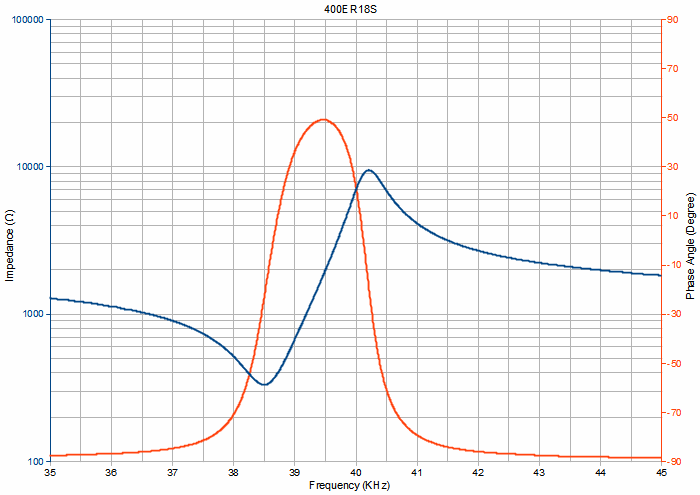

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level |
 |

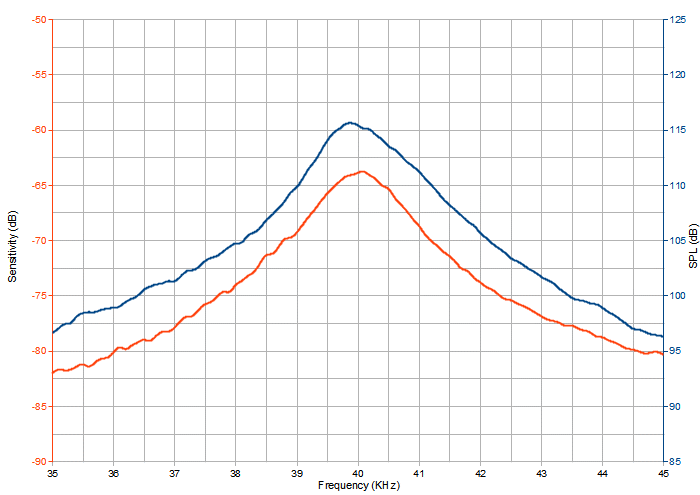

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm |
 |

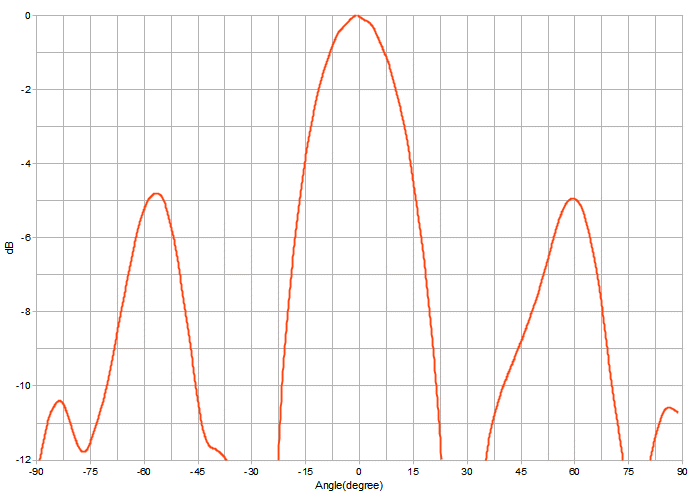

| Beam Angle: Tested at 40.0KHz |
 |

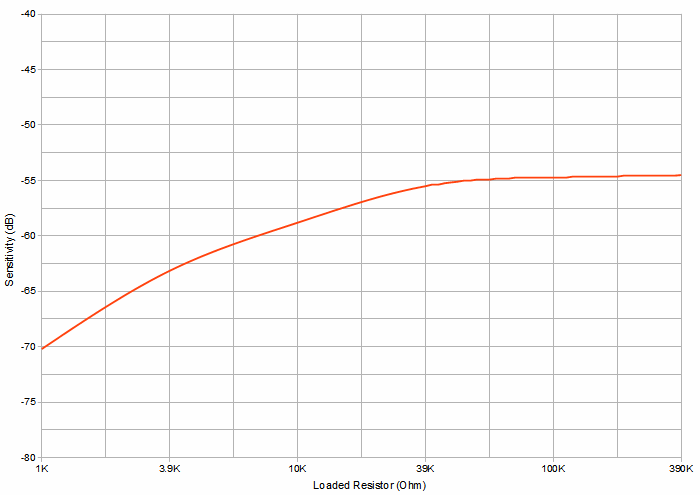

| Sensitivity Variation vs. Loaded Resistor - 400ER180 Receiver |
 |

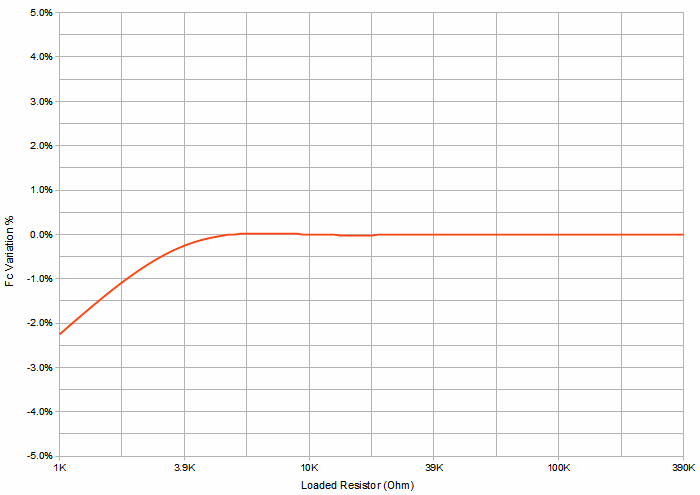

| Center Frequency Shift vs. Loaded Resistor - 400ER180 Receiver |
 |

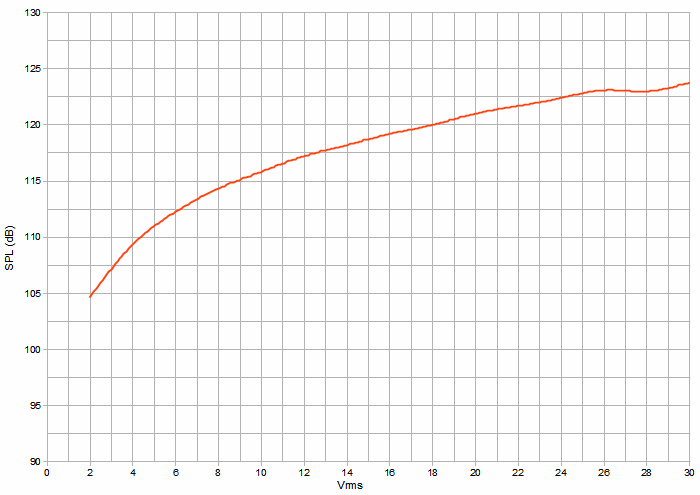

| SPL Variation vs. Driving Voltage - 400ET180 Transmitter |
 |

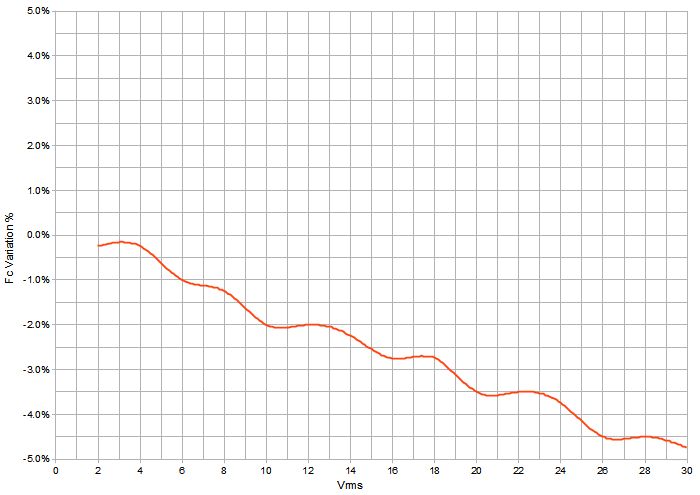

| Center Frequency Shift vs. Driving Voltage - 400ET180 Transmitter |
 |
