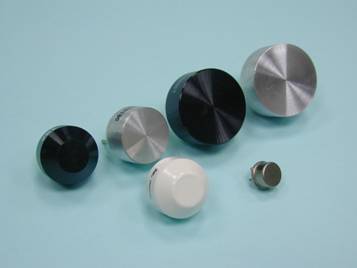

| Air Ultrasonic Transducer - Enclosed Type |
 |
The Standard Enclosed type transducers, are designed to be hermetically sealed and can be used for outdoor installations, as well as dusty indoor atmospheres. The transducers consist of a metal housing with integral metal diaphragm. They operate at resonance on the first harmonic overtone. The backs of these transducers are completely sealed with resin, protecting them from exposure to the environment. Although it is constructed to be watertight, it is not recommended for use under water. |
| 400ET250 Finite Element Analysis Frequency: 40.52KHz |
 Click for motion animation |
| Model Number | Description | Center Frequency (KHz) |
Sensitivity or SPL (min.) |
Bandwidth (-6dB)(KHz) |
Dimensions (mm)> |
| 250ET250 250ER250 |
Transmitter | 25.0¡Ó1.0 | 113dB | 1.0 | 25.0£p x 12.0 |
| Receiver | -63dB | ||||
| 328ET250 328ER250 |
Transmitter | 32.8¡Ó1.0 | 113dB | 1.0 | 25.0£p x 14.2 |
| Receiver | -67dB | ||||
| 400ET080 400ER080 |
Transmitter | 40.0¡Ó2.0 | 100dB | 1.5 | 8.4£p x 4.6 |
| Receiver | -80dB | 2.0 | |||
| 400ET180 400ER180 |
Transmitter | 40.0¡Ó1.0 | 115dB | 1.5 | 18.0£p x 12.0 |
| Receiver | -70dB | ||||
| 400ET250 400ER250 |
Transmitter | 115dB | 1.0 | 25.0£p x 12.0 | |
| Receiver | -70dB | ||||
SPL: 0dB = 0.0002ubar, measured upon 10Vrms sine wave at 30 cm distance; Sensitivity: 0dB re 1V/ubar, receiver in parallel with a 3.9K Ohm resistor | |||||
