| Air Ultrasonic Ceramic Transducers開放型超音波換能器 | 400ST/R160 |
| Temperature Character |

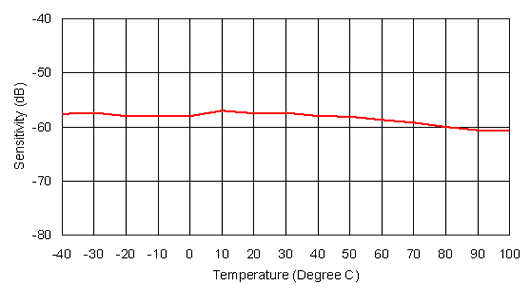

| Sensitivity Variation vs. Temperature |
 |

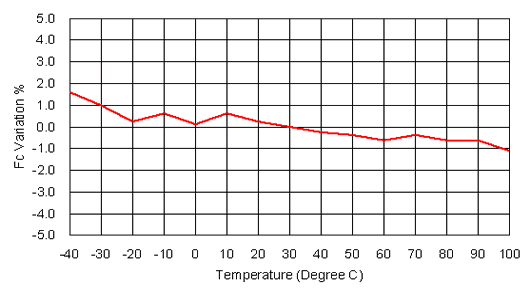

| Receiver Center Frequency Shift vs. Temperature |
 |

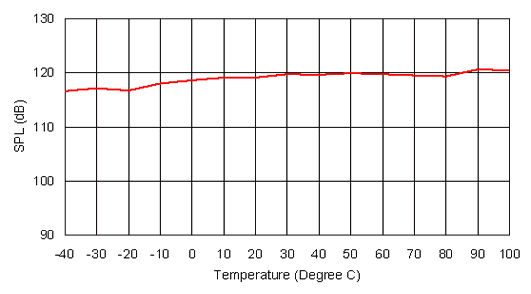

| SPL Variation vs. Temperature |
 |

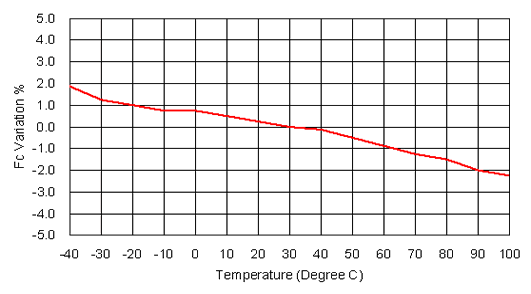

| Transmitter Center Frequency Shift vs. Temperature |
 |
