| Air Ultrasonic Ceramic Transducers | 400ST/R160 |
| Acoustic Performance |

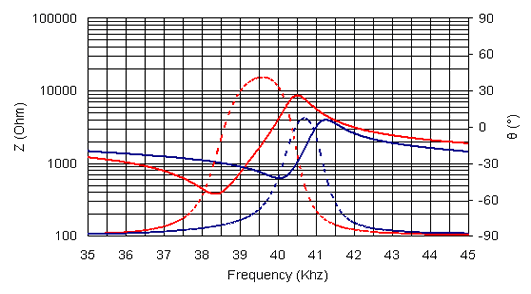

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 400SR160 Impedance |  |
400SR160 Phase Angle |  |
| 400ST160 Impedance |  |
400ST160 Phase Angle |  |
 |
|||

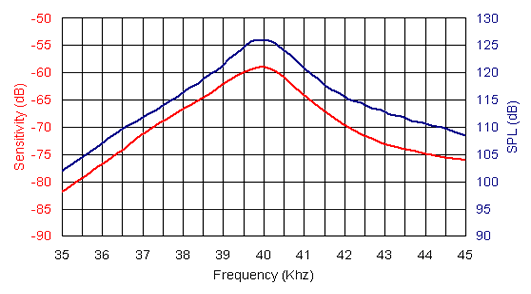

| Sensitivity/Sound Pressure Level:Tested under 10Vrms @30cm | |||
 |
|||

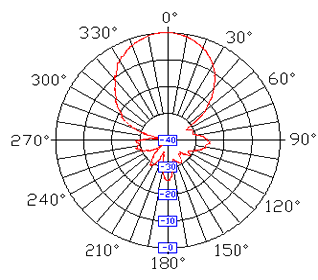

| Beam Angle: Tested at 40.0KHz | |||
 |
|||

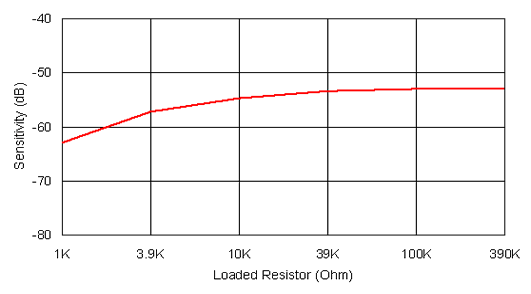

| Sensitivity Variation vs. Loaded Resistor - 400SR160 Receiver | |||
 |
|||

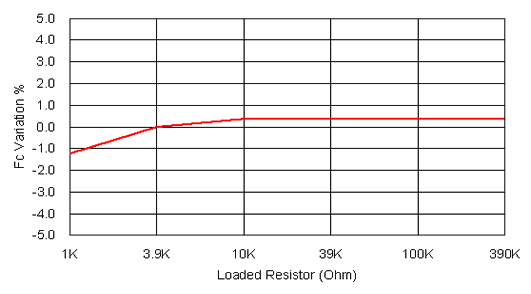

| Center Frequency Shift vs. Loaded Resistor - 400SR160 Receiver | |||
 |
|||

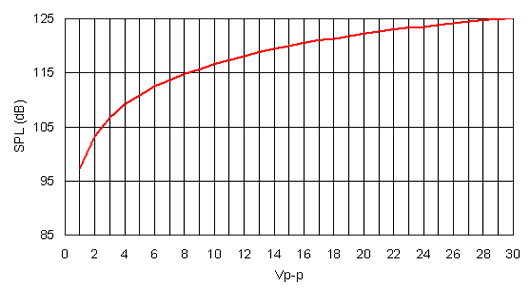

| SPL Variation vs. Driving Voltage - 400ST160 Transmitter | |||
 |
|||

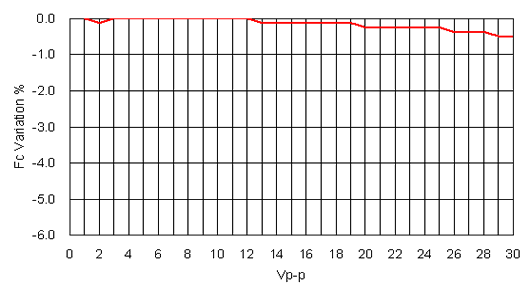

| Center Frequency Shift vs. Driving Voltage - 400ST160 Transmitter | |||
 |
|||
