| Air Ultrasonic Ceramic Transducers | 328ET/R250 |
| Acoustic Performance |

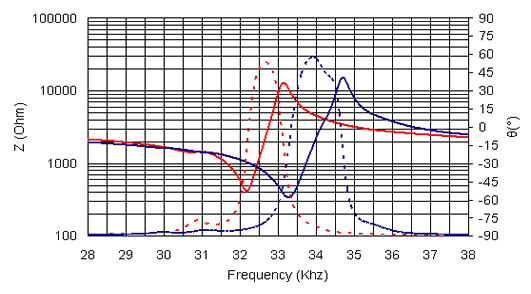

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 328ER250 Impedance |  |
328ER250 Phase Angle |  |
| 328ET250 Impedance |  |
328ET250 Phase Angle |  |
 |
|||

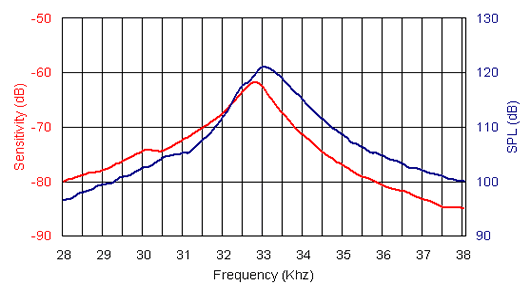

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||

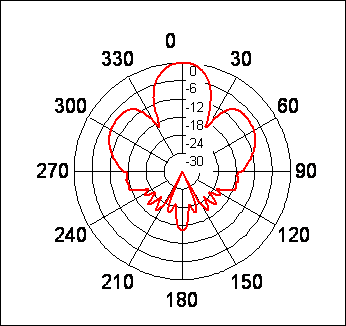

| Beam Angle: Tested at 32.8KHz | |||
 |
|||

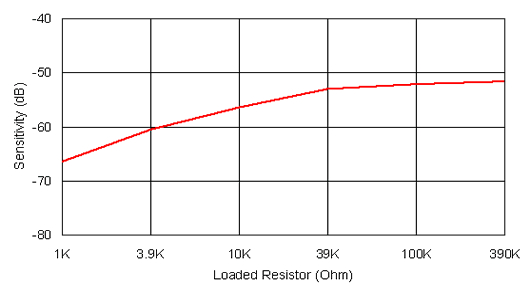

| Sensitivity Variation vs. Loaded Resistor - 328ER250 Receiver | |||
 |
|||

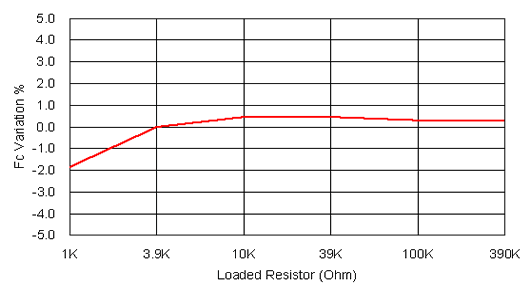

| Center Frequency Shift vs. Loaded Resistor - 328ER250 Receiver | |||
 |
|||

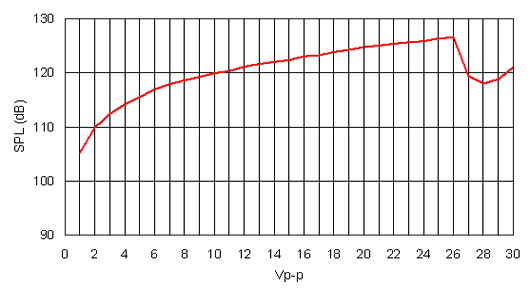

| SPL Variation vs. Driving Voltage - 328ET250 Transmitter | |||
 |
|||

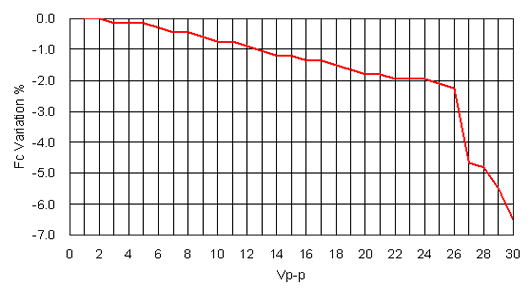

| Center Frequency Shift vs. Driving Voltage - 328ET250 Transmitter | |||
 |
|||
