| Piezoelectric Blood Pressure Sensors |
 |
Pro-Wave's new line of piezoelectric pressure sensors are designed specially for digital blood pressure monitors, which has one piece molded air pressure hose bonded with sensor cable.

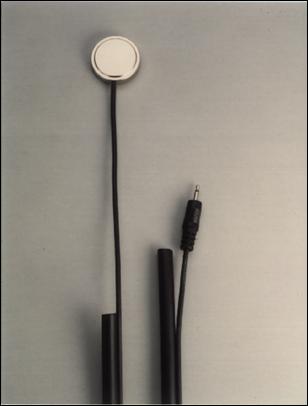

All piezoelectric pressure sensors are supplied with a high sensitivity piezoelectric ceramic element glued with a metal diaphragm by using a rigid bonding agent. A built-in low noise junction field effect transistor housed in a plated metal housing. Standard version of piezoelectric pressure sensor has an 1.3 meter of one piece shielding cable bonding with air pressure hose, and a molded 2.5 mm diameter phone plug at other cable end. |
| |
| Features |
Applications |
- High mechno-electrical sensitivity
- Low impedance output
- Wide operation temperature
- Molded air pressure hose bonded with shielding cable
|
- Sensors for digital blood pressure monitor
- Sensors for machine health monitors
- Sensors for car burglar alarms home security and etc.
|
| Specification |
| Model number |
BP-2401 (with air pressure hose)
BP-2402 (without air pressure hose) |
| Voltage sensitivity |
40mV/ms -2 |
| Lower frequency limit |
30Hz |
| Upper frequency limit |
1000Hz |
| Resonant frequency |
2,400 ± 20%Hz |
| Operation voltage |
DC 3 – 30 volts |
| Operation temperature |
-20 to + 60 °C |
| Storage temperature |
-40 to + 80 °C |

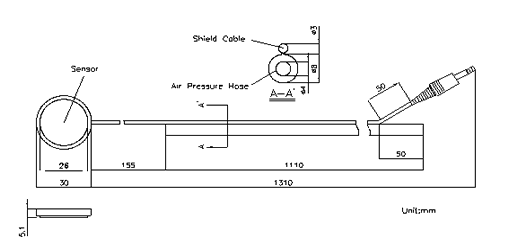

| Dimensions |
 |
