200GE180 Specification

匹配層防水型超音波換能器

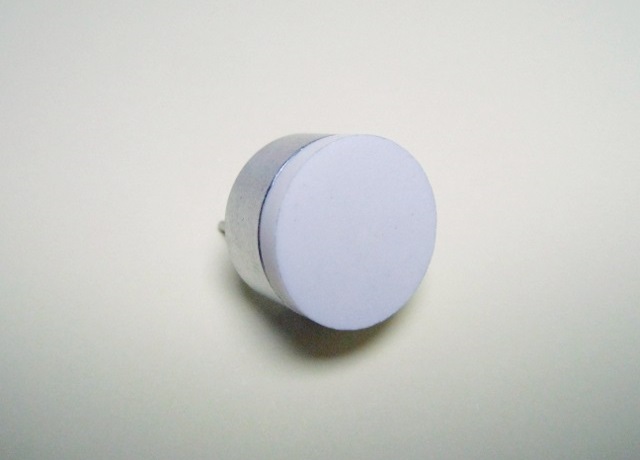

200GE180

Specification | Acoustic Performance | Test Circuit | Dimensions | Download | Back | Home

	Features
	Waterproof and dust-proof Meet NEMA 4X, 6P and IP67 requirements Excellent temperature and humidity durability High sound output/sensitivity
	Applications
	Echo ranging Robotics Proximity sensing Automation

Specification
200GE180	Transceiver
Center Frequency	200.0±10.0 KHz
Bandwidth Echo Sensitivity -6dB	10.0 KHz
Echo Sensitivity 0dB re 20Vp-p Square wave, 30 bursts @ 25cm	-60 dB min. 20 mVp-p min.
Dead Zone 10 Bursts	7 cm
Capacitance at 1KHz ±20%	600 pF
Max.Driving Voltage Pulse 10% duty cycle tone burst	50 Vp-p
Total Beam Angle -6dB	10° typical
Matching Window	Resin with filler
Operation Temperature	-20℃ to 60℃
Storage Temperature	-30℃ to 70℃

All specification taken typical at 25℃; closer frequency tolerance can be supplied upon request.
Low ringing model can be arranged upon request

Model available
1. 200GE180	Aluminum Housing
