| Air Ultrasonic Ceramic Transducers | 500MB120 |
| Acoustic Performance |

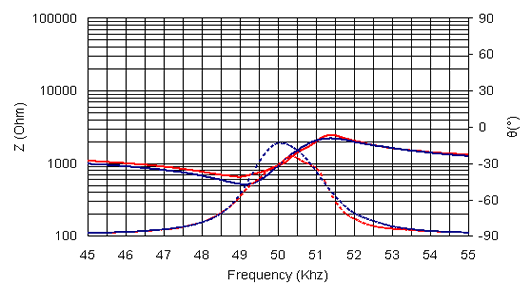

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| Receiver Impedance |  |
Receiver Phase Angle |  |
| Transmitter Impedance |  |
Transmitter Phase Angle |  |
 |
|||

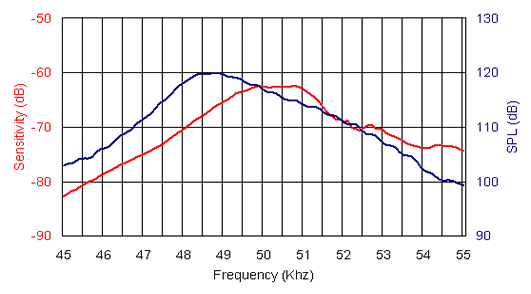

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||
| Beam Angle: Tested at 50.0KHz | |||
 |
|||
