| Air Ultrasonic Ceramic Transducers | 400WB160 |
Specification | Acoustic Performance | Dimensions | Download | Back | Home
| Acoustic Performance |

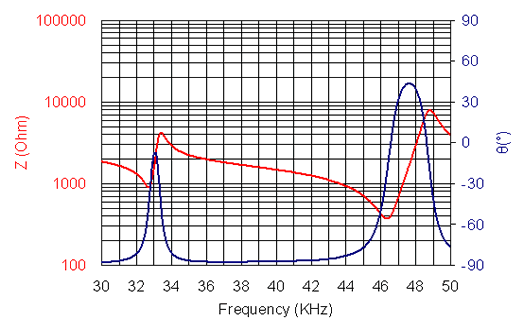

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 400WB160 Impedance |  |
400WB160 Phase Angle |  |
 |
|||

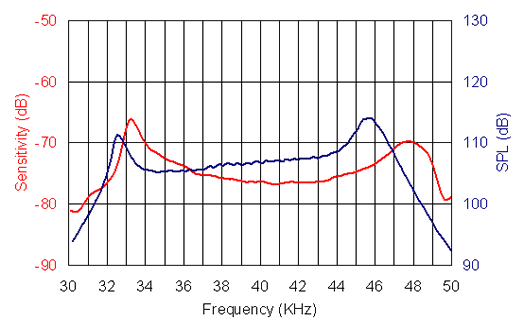

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||

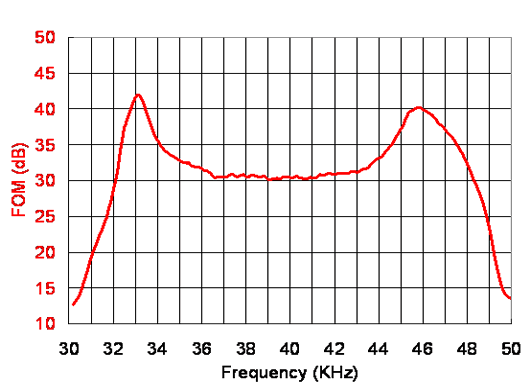

| Figure of Merit (Sensitivity + SPL): | |||
 |
|||
| Beam Angle: Tested at 40.0KHz | |||
 |
|||
