| Air Ultrasonic Ceramic Transducers | 400ST/R120 |
| Acoustic Performance |

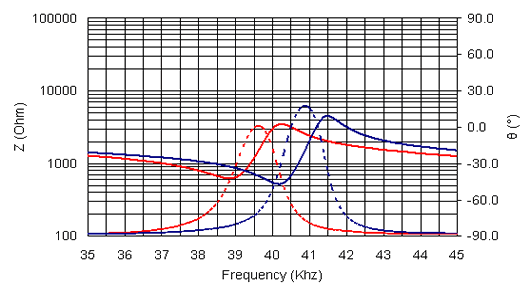

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 400SR120 Impedance |  |
400SR120 Phase Angle |  |
| 400ST120 Impedance |  |
400ST120 Phase Angle |  |
 |
|||

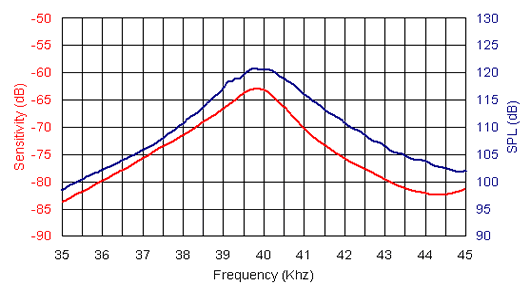

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||

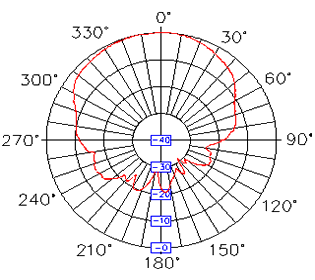

| Beam Angle: Tested at 40.0KHz | |||
 |
|||
| Sensitivity Variation vs. Loaded Resistor - 400SR120 Receiver | |||
 |
|||
| Center Frequency Shift vs. Loaded Resistor - 400SR120 Receiver | |||
 |
|||

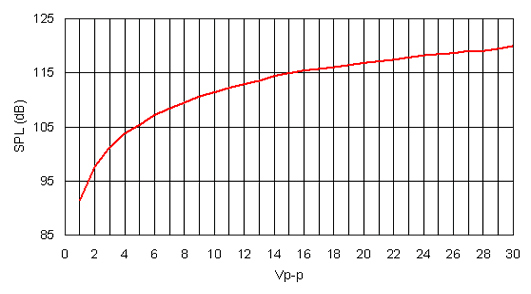

| SPL Variation vs. Driving Voltage - 400ST120 Transmitter | |||
 |
|||

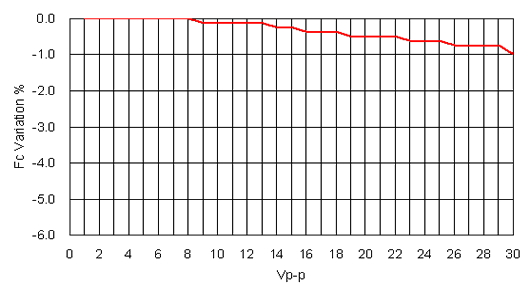

| Center Frequency Shift vs. Driving Voltage - 400ST120 Transmitter | |||
 |
|||
