| Air Ultrasonic Ceramic Transducers | 328ST/R180 |
| Acoustic Performance |

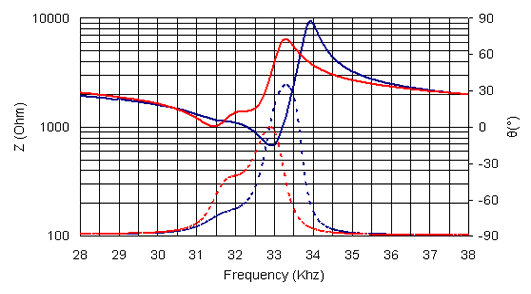

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 328SR180 Impedance |  |
328SR180 Phase Angle |  |
| 328ST180 Impedance |  |
328ST180 Phase Angle |  |
 |
|||

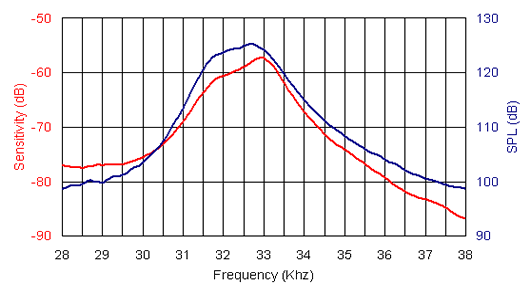

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||

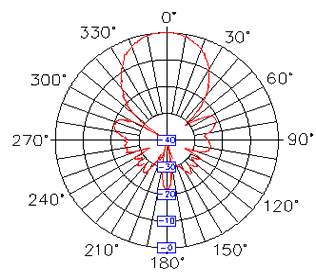

| Beam Angle: Tested at 32.8KHz | |||
 |
|||
| Sensitivity Variation vs. Loaded Resistor - 328SR180 Receiver | |||
 |
|||
| Center Frequency Shift vs. Loaded Resistor - 328SR180 Receiver | |||
 |
|||

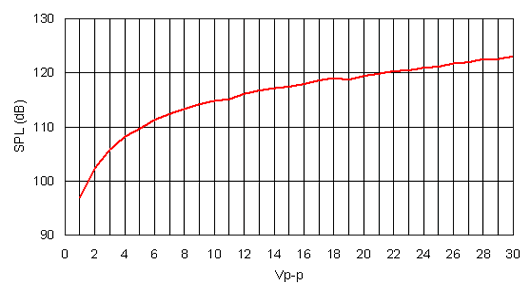

| SPL Variation vs. Driving Voltage - 328ST180 Transmitter | |||
 |
|||

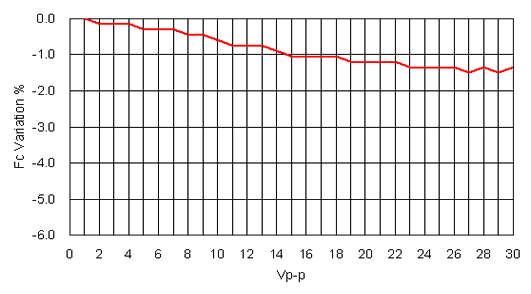

| Center Frequency Shift vs. Driving Voltage - 328ST180 Transmitter | |||
 |
|||
