| Air Ultrasonic Ceramic Transducers | 250ST/R240 |
| Acoustic Performance |
| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 250SR240 Impedance |  |
250SR240 Phase Angle |  |
| 250ST240 Impedance |  |
250ST240 Phase Angle |  |
 |
|||
| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||
| Beam Angle: Tested at 25.0KHz | |||
 |
|||
| Sensitivity Variation vs. Loaded Resistor - 250SR240 Receiver | |||
 |
|||
| Center Frequency Shift vs. Loaded Resistor - 250SR240 Receiver | |||
 |
|||

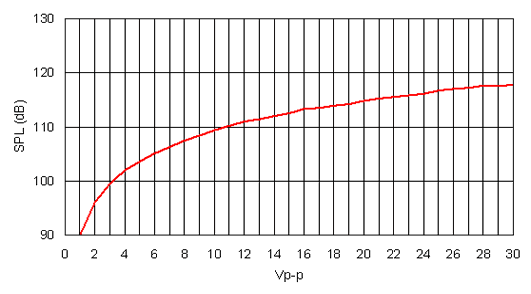

| SPL Variation vs. Driving Voltage - 250ST240 Transmitter | |||
 |
|||

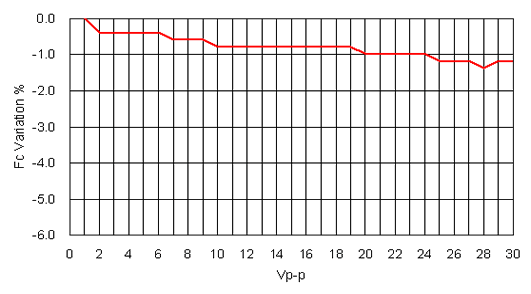

| Center Frequency Shift vs. Driving Voltage - 250ST240 Transmitter | |||
 |
|||
