| Air Ultrasonic Ceramic Transducers | 250ST/R160 |
| Temperature Character |

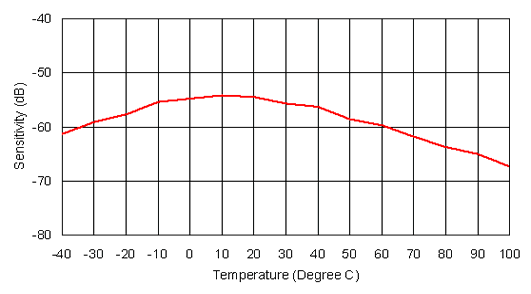

| Sensitivity Variation vs. Temperature |
 |

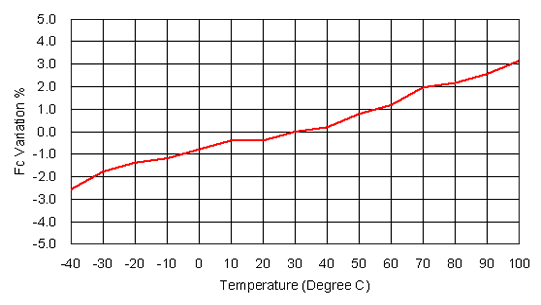

| Receiver Center Frequency Shift vs. Temperature |
 |

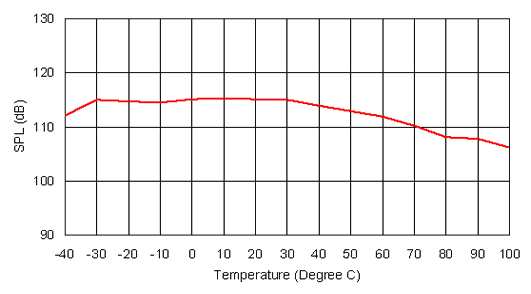

| SPL Variation vs. Temperature |
 |

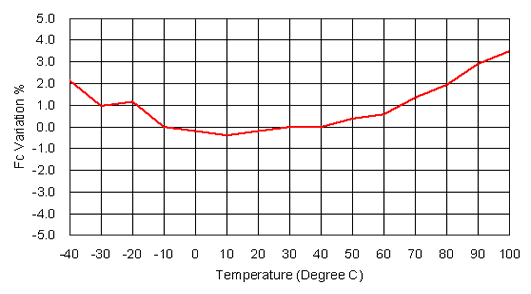

Transmitter Center Frequency Shift vs. Temperature |
 |
