| Air Ultrasonic Ceramic Transducers | 250ST/R160 |
| Acoustic Performance |

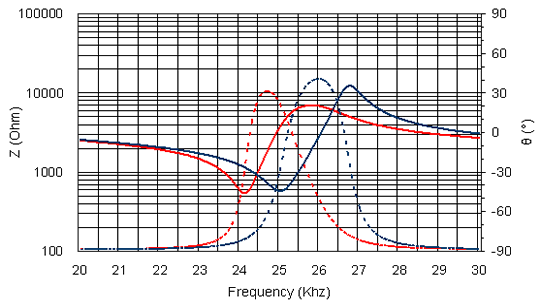

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 250SR160 Impedance |  |
250SR160 Phase Angle |  |
| 250ST160 Impedance |  |
250ST160 Phase Angle |  |
 | |||

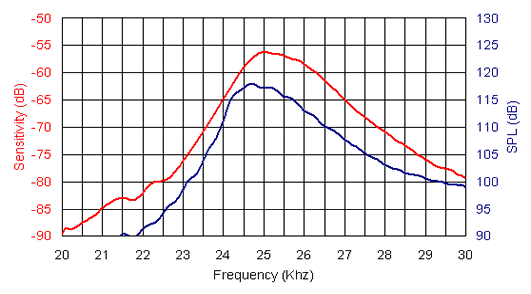

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 | |||

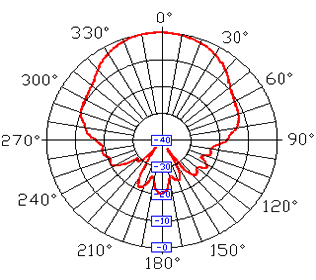

| Beam Angle: Tested at 25.0KHz | |||
 | |||
| Sensitivity Variation vs. Loaded Resistor - 250SR160 Receiver | |||
 | |||
| Center Frequency Shift vs. Loaded Resistor - 250SR160 Receiver | |||
 | |||

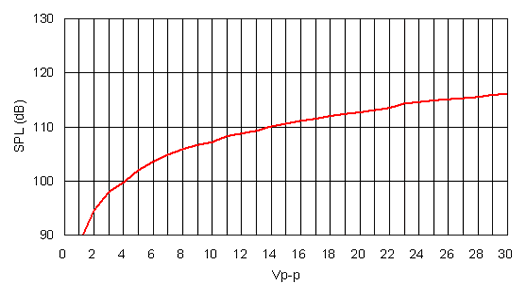

| SPL Variation vs. Driving Voltage - 250ST160 Transmitter | |||
 | |||

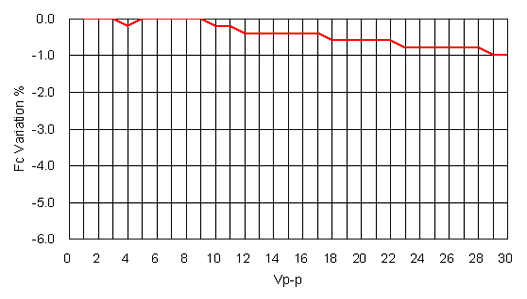

| Center Frequency Shift vs. Driving Voltage - 250ST160 Transmitter | |||
 | |||
