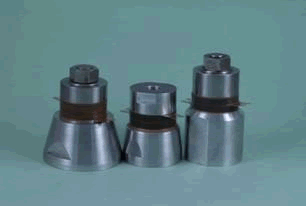

Bolt Clamped High Power Transducers
Dimension | Download | Back | Home
Features:
  • High efficiency and output
  • Large amplitude
  • Low heat generation
  • Durability and stability
  • Easy connection
Applications:
  • Ultrasonic cleaners
  • Ultrasonic Welders
  • Ultrasonic processing machines

45282H Finite Element Analysis
Frequency: 28.2 KHz		 Click for motion animation

Model Number Resonant Frequency (KHz) Motion Admittance (mMho) Mechanic Q (Qm) Capacitance (pF) Allowable Vibaration Rate (cm/sec)
30402S 40.0 35 500 2700 50
45402H 40.0 15 500 4000 50
45282H 28.2 50 500 4000 50
60282H 28.2 40 500 4000 25

All specification taken at 25 ¢XC

Dimensions

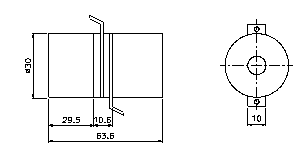

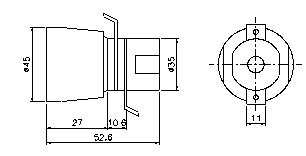

30402S 45402H

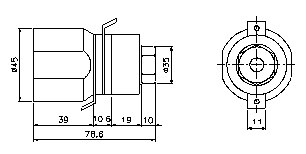

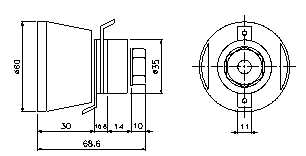

45282H 60282H
