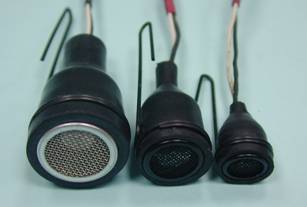

Ultrasonic Transducer Assembled Units |
Transducers equip with a 2.5 meters shield cable and covered by
a rubber boot with a metal clip for easy installation are very suitable
for most of vehicle alarms.
RCA, Amp or Molex type connector at the other cable end is available
upon request.
|
| Specifications |
| Model Number |
Transducer Used |
Cable Length |
Connector Used |

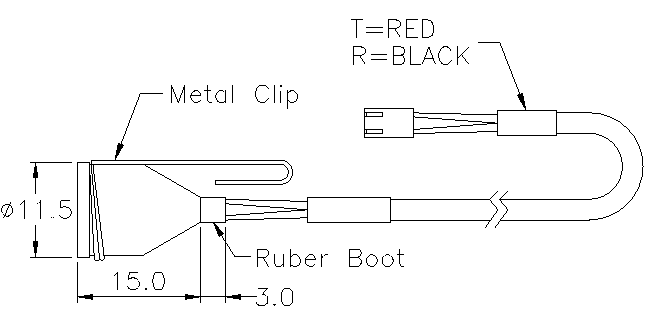

| SQS-04 |
400ST/R100/10B/10P |
2.5 m |
Standard versions are assembled without connectors. RCA, Amp, Molex and other types of connectors are available upon request |

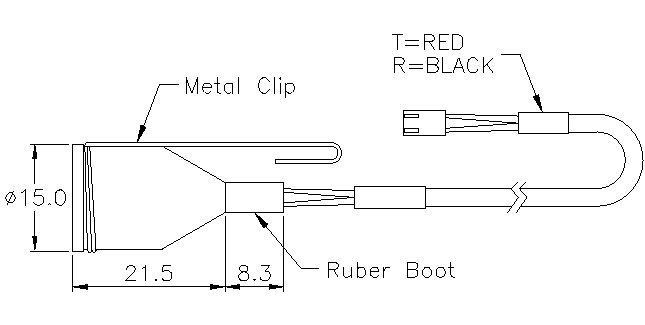

| SQS-05 |
400ST/R120/12B/12P |
2.5 m |

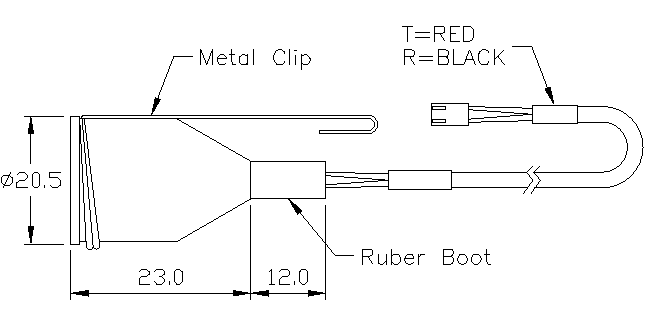

| SQS-06 |
400ST/R160/16B/16P |
2.5 m |
| |
| Dimensions |
|
|
|
