| Matching Transformers |

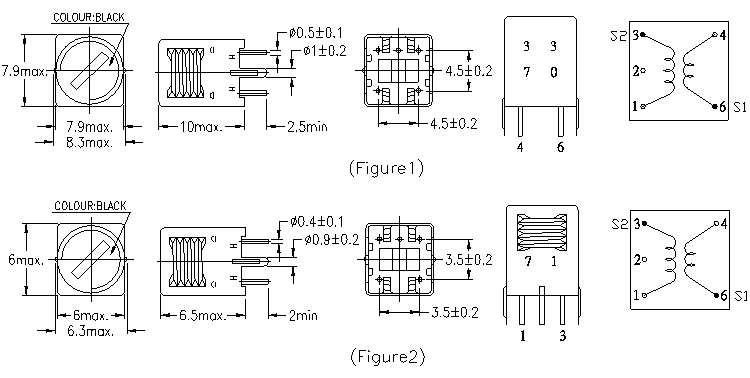

| Dimensions |
 |
| Specification | |||||
| Parts Number | K4000001 | K4000002 | K4000003 | K4000004 | K4000005 |
| Operating Frequency | 40.0 KHz | 40.0 KHz | 235.0 KHz | 40.0 KHz | 125.0 KHz |
| Varible Inductance (min.) | 10.6 mH¡Ó 6% | 5.3 mH¡Ó 6% | 1.0 mH¡Ó 6% | 6.0 mH¡Ó 6% | 1.5 mH¡Ó 6% |
| Unloaded Q (min.) | 70 | 100 | 25 | 90 | 80 |
| Turn Ratio | 1:10 | 1:10 | 1:10 | 1:10 | 1:20 |
| Matching Transducer | 400EP14D | 400EP14D* | 235SR130 | 400EP18A | 125SR250 |
| Dimensions | Figues 1 | Figues 1 | Figues 2 | Figues 1 | Figues 1 |
| *(Temperature Compensated Type) | |||||
